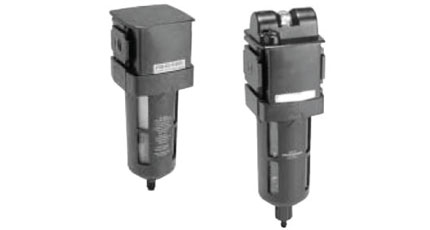

FAIRCHILD Coalescing Filters (D Series)

Coalescing Filters (D Series)

FAIRCHILD Coalescing Filters (D Series)

Main Features

  • 0.5, 0.01, or 0.003 Micron Auto or Manual Drain Filter
  • Supply Pressure maximum of 150psig
  • Flows to 98 SCFM
  • Polycarbonate or Metal Bowl

Benefits

  • High Flow Capacity
  • 0.5, 0.01, or 0.003 Micron Filtration
  • Rugged Construction
  • Modular or Pipe Mount

Take full advantage of compressed gases in pneumatic systems. The gas must be adequately prepared. Fairchild’s new Coalescing Filters provide the clean, dry, lubricated air essential for optimum performance of pneumatic systems. With their modular construction, the coalescing filters provides compact efficiency, high flow, and superior 0.5, 0.01, or 0.003 micron filtration.

Specifications
Metal Bow 0 to 250 PSIG (0 to 17.2 bar) 32°F to 150°F (0°C to 65.5°C)
Plastic Bowl 0 to 150 PSIG (0 to 10 Bar) 32o F to 125o F (0 to 52o C)
Standard Filtration 5 micron
