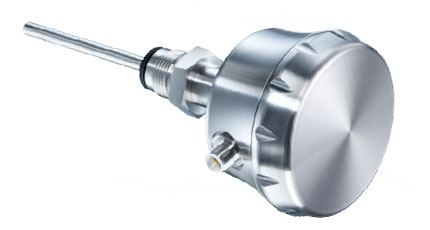

BAUMER CombiTemp TFRN

Industrial RTD temperature sensor Optional display: CombiView™ DFON Threaded process connections 4...20 mA, HART- or Pt100-output Room temperature sensor

Industrial RTD Sensor

Main Features

  • Pt100 sensor element, 2- or 4-wire
  • HART®, PA
  • Built in graphical display
  • CombiViewTM DFON optional
  • Head mounted 4…20 mA transmitter, FlexTop type 22xx
  • ATEX
  • Programmable by touch screen
  • Easy and full programmable with FlexProgrammer 9701

Application

  • Oil and Gas
  • Chemical
  • Energy
  • General Process Industry

Technical specification
Measuring ranges -50...400 °C
Accuracy 0,1% @ ambient -10…70 °C
Front glass Polycarbonate

Certification

Approvals
Apply to EMC directive 2004/108/CE in accordance with EN61000-6-2, EN 61000-6-3 Pressure directive 97/23/CE
