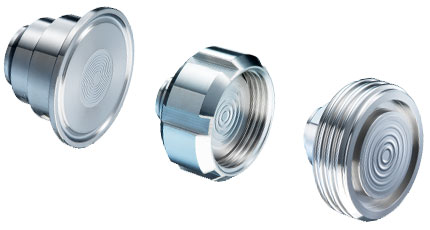

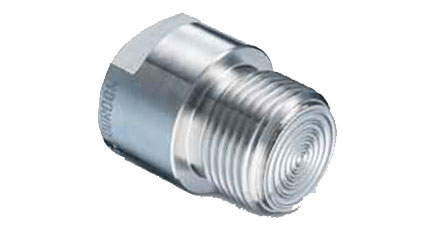

BAUMER BOURDON DADF Hygienic Diaphragm Seal DIN 11851 with Thread

Clamp connection according to DIN 32676 or ISO 2852
0…1 bar to 0…40 bar
Stainless steel or Hastelloy
3A, FDA

BAUMER BOURDON DADF Hygienic Diaphragm Seal DIN 11851 with Thread

Main Features

  • Stainless steel 1.4404/1.4435 (316L)
  • Hygienic connections according to several standards
  • Sterilization in place (SIP)
  • Cleaning in place (CIP)
  • 3A
  • FDA conform

Application

  • Food and Beverage
  • Laboratory & Medical

Technical Data
Body material Stainless Steel 1.4404
Working temperature -20 … 225 °C (depending on the filling fluid)
Filling fluids LRS1: Vaseline (-15 … 150 °C, FDA conform) / LRS10: Vaseline (-20 … 225 °C, FDA conform)
