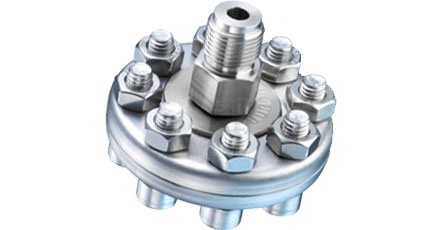

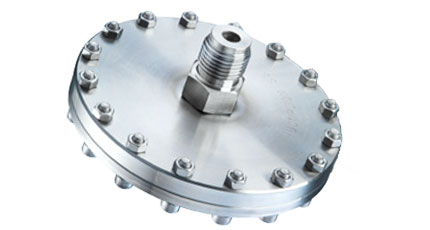

BAUMER BOURDON DT1 – DT2 – DT3 – DT5 – DT8 Threaded Diaphragm seal


Screwed diaphragm seal, threaded
0…160 mbar to 0…1000 bar
Stainless steel and exotic materials
Option: Cleaning ring

BAUMER BOURDON DT1 – DT2 – DT3 – DT5 – DT8 Threaded Diaphragm seal

Main Features

  • Wide range of threaded process connections
  • Internal welded diaphragm
  • Lower part exchangeable
  • Option : exotic materials for wetted parts
  • Option : with cleaning ring

Application

  • Oil & Gas / Chemical
  • Water & Waste water
  • Energy
  • Transportation & Logistics
  • Machinery

Technical Data
Pressure ranges 0 ... 160 mbar to 0 ... 1000 bar
Wetted parts Stainless steel 1.4404 (AISI 316L) Stainless steel 1.4435 (AISI 316L) Option : exotic materials or coatings
Cleaning ring With 1 flushing port 1/8 NPT female Only DT1, DT2, DT3
Gaskets DT1, DT2, DT3 : PTFE (max. 200°C) DT5 : stainless steel 1.4404 (max. 200°C) DT8 : graphite (max. 400°C)
