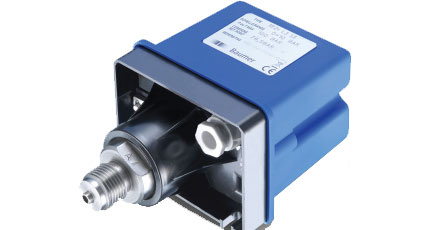

BAUMER BOURDON RP2E Compact Pressure Switch Intrinsic Safety


Pressure switch with ATEX EEx d approval
Good resistance to vibrations and overpressure
Measuringe range: 0...1 to 0...100 bar
Overpressure / Static pressure: max 200 bar

BAUMER BOURDON RP2E Compact Pressure Switch Intrinsic Safety

Main Features

  • Excellent repeatability
  • Dead band adjustment for regulation
  • Fix dead band for control and alarm
  • Resistant to accidental overpressure
  • Explosion proof Hazardous areas 1, 2, 21, 22

Application

  • Pneumatic appliances
  • Power generation safety equipment
  • Water treatment
  • Valve and compressor control

Technical Data
Pressure range 0 ... 1 bar to 0 ... 100 bar
Temperature Process : -40 ... +150 °C / Ambient : -20 ... +70 °C (T5) / -20 ... +60 °C (T6) / Storage : -40 ... +70 °C
Diaphragm Stainless steel 1.4404 (316L)
Electrical connection Via internal terminal block with cable gland 3/4 NPT (ATEX certified) for cable Ø 7 to 12 mm
