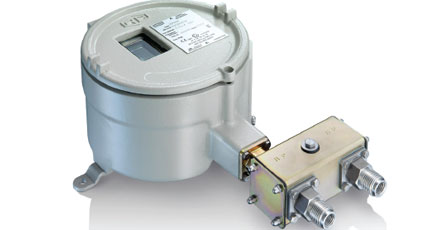

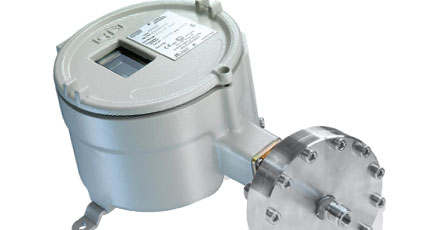

BAUMER BOURDON RDE Differential Pressure Switches Explosion Proof


Differential pressure switch
Approval: ATEX EEx
Adjustable setpoint(s) and deadband
Measuring range: -2.5...2.5 mbar to 2.5...30 bar
Overpressure / Static pressure: 0.15 to 220 bar

BAUMER BOURDON RDE Differential Pressure Switches Explosion Proof

Main Features

  • Excellent repeatability
  • Dead band adjustment for regulation
  • Fix dead band for control and alarm
  • Explosion proof Hazardous areas 1, 2, 21, 22

Application

  • Pneumatic appliances
  • Power generation safety equipment
  • Water treatment
  • Valve and compressor control

Technical Data RDE4 - RDE8
Pressure range -2.5 ... 2.5 mbar to 2.5 ... 30 bar
Temperature Pressure range codes 110 to 157 Medium: -15 ... + 150 °C / Ambient: -20 ... + 55 °C / Storage: -40 ... + 70 °C
Temperature Pressure range codes 211 to 258 Medium: -50 ... + 200 °C / Ambient: -20 ... + 55 °C / Storage: -40 ... + 70 °C
Electrical connection Terminal block with metallic cable gland for Ø 7 to 12 mm standard
