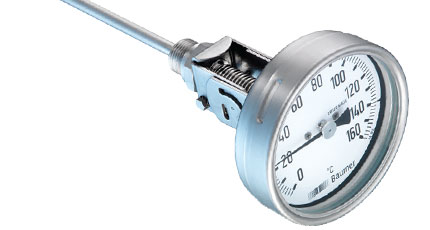

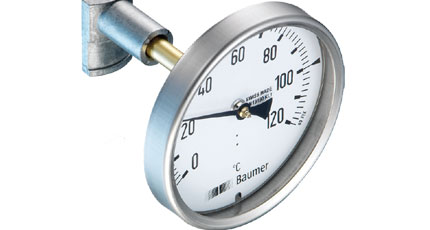

BAUMER BOURDON Stainless Steel Bimetal Thermometer (TBI Series)

Bi-metal thermometer
∅80...160 mm
-20...+250°C
Stainless steel, IP67

BAUMER BOURDON Stainless Steel Bimetal Thermometer (TBI Series)

Main Features

  • For corrosive gasses and liquids
  • Class 1 according to EN 13190
  • Wetted parts and case material stainless steel
  • Option: case material 1.4404 (316L) for aggressive atmosphere

Application

  • Food & Beverage
  • Oil & Gas / Chemical
  • Laboratory & Medical
  • Energy

Technical Data
Nominal size 80, 100, 130, 160 mm
Temperature ranges -70 ... 600 °C / -100 ... 1100 °F
Accuracy According to EN 13190/ up to 250 °C: class 1 / above 250 °C: class 2 (class 1 on request)
Protection rating IP 67 (EN 60529)
Temperature limit ranges ≤ 400 °C: 135 % F.S. / ranges > 400 °C: 100 % F.S.

Options
ATEX II2GDc (Only with window laminated safety glass) Code 0078
Stainless steel housing 1.4404 (316L) (1) Code 0110
Dampening grease Code 0581
Zero adjustment by knob on the backside (2) Code 0727
Laminated safety glass Code 0751
Acrylic glass (PMMA or Plexiglass) (3) Code 0752
Window polycarbonate (4) Code 0753
Silicon free, label marking Code 0793
Silicon free, marking on dial Code 0794
Customer specific immersion length (5) Code 9003_xxxx
Red mark Code 9700
Specific temperature range Code 9704
Customer logo on dial Code 9710
Specific technical data on dial Code 9711
