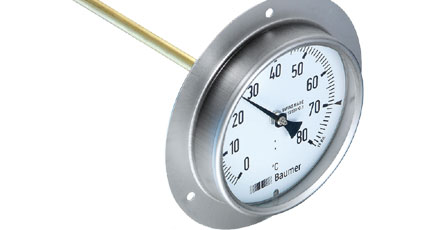

BAUMER BOURDON Bimetal Thermometer for Air Ducts (TBL Series)

Bi-metal thermometer
Ø100mm
-30...+80°C
For ventilation systems

BAUMER BOURDON Bimetal Thermometer for Air Ducts (TBL Series)

Main Features

  • Thermometer for direct mounting on air ducts in ventilation systems
  • Class 1 according to EN 13190
  • Immersion tube brass
  • Immersion length 165 mm

Application

  • Energy
  • Machinery
  • HVAC

Technical Data
Nominal size 100 mm
Temperature range 0 ... 80 °C / 0 ... 100 °C / -20 ... 60 °C / -30 ... 50 °C
Accuracy Class 1 (according to EN 13190)
Protection rating IP 50 (EN 60529)

Options
Dampening grease Code 0581
Acrylic window (PMMA or Plexiglass) (1) Code 0752
Silicon free, label marking Code 0793
Silicon free, marking on dial Code 0794
Red mark Code 9700
Green mark Code 9701
Customer logo on dial Code 9710
Specific technical data on dial Code 9711
